Clirik Barite Grinding Plant Introduction

Brief Introduction of barite grinding plant

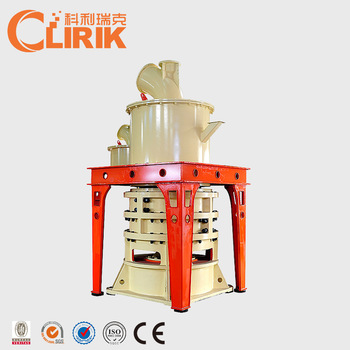

Name: Barite Grinding Mill
Brand: Clirik
Model: HGM80, HGM90, HGM100, HGM125 and HGM1680L
Use Range: including barite, dolomite, limestone, carbon black, calcium carbonate, talc, gypsum and other more than 100 kinds of stone materials grinding.
Finish Powder Fineness: the finish powder fineness made by barite grinding plant is adjustable, the finest finish powder fineness made by our barite grinding plant can be adjusted between 300 mesh to 3000 mesh.
Capacity: according to the customers different fineness demand, the capacity in the range of 5-45 tons per hour.

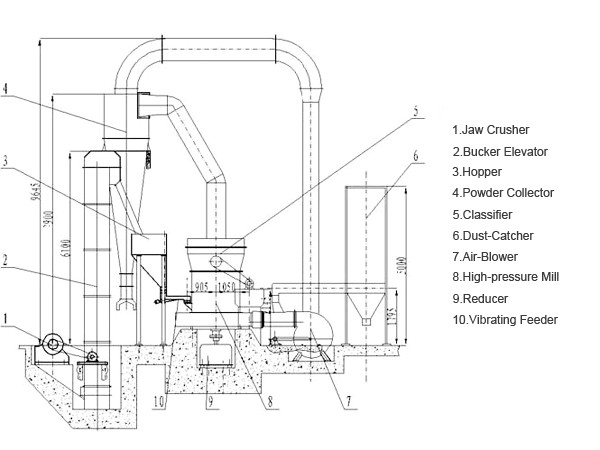

The main mining machines in whole set barite powder production line



1.Barite crusher
2.Bucket elevator
3.Hopper
4.Calcite grinding mill
5.Powder collector
6.Screw conveyor
7.Powder packing machine

Technology data of HGM series barite grinding plant

model	HGM80	HGM90	HGM100	HGM125	HGM1680L
ring diameter(mm)	800	900	1000	1250	1680
ring number	3	3-4	4	4	4
roller number	18-21	24-29	28-36	30-44	30-40
main shaft speed	230-240	200-220	180-200	1335-155	120-130
input size	10	10	15	15	20
finish powder fineness (mesh)	300-3000	300-3000	300-3000	300-2500	300-2500
capacity(t/h)	0.4-4.5	0.6-6.5	1-9	2-16	10-45
outlet size(L*W*H)m	13.9*4*6.2	14.7*4.8*7.2	18*4.6*8.6	14*9*10.25	26.3*7.5*11.9

Other data of Clirik barite grinding plant

Warranty: 12 months
After Sale: Abroad Engineer Available
Condition: New
Motor Type: AC Motor
Power: KW
Color: As Customers’ Request
Motor Brand: Siemens
Control System: PLC

More information about barite grinding plant, welcome to inquiry.
