Clirik Ultra Fine Grinding Plant Workflow

It is well known that from large-diameter stones to ultra fine stone powders, there are many equipments, and many processes. Shanghai Clirik Machine Co., Ltd. is a company specializing in the field of ultra fine powder grinding. We will propose different stone powder processing solutions for different customers. But in general, the workflow of the ultra fine grinding plant is as follows.

After the large-sized raw materials are crushed to the required feed size, the material is transported to the storage bin by the bucket elevator, and then uniformly sent by the electromagnetic vibrating feeder to the grinding chamber of the main machine to enter the grinding chamber. The material is shoveled by the blade into the grinding roller and the grinding ring is crushed, the blower blows air from the diverter disc into the grinding chamber, and the pulverized powder is sent to the analysis chamber, and the rotation is driven by the speed regulating motor through the transmission device. The separation of the impeller, the large granular material falls back to the grinding chamber, re-grinding, and the qualified fine powder enters the finished cyclone collector with the airflow, and is separated from the air and discharged from the discharge port into a finished product.

The blade system plays a very important role in the operation of the main engine. The utility model is located at the lower end of the grinding roller, and the material is shoveled and fed into the roller ring between the blade and the grinding roller to form a cushion layer, and the material layer is rotated by the grinding roller to generate an outward pressing force to the material. Milling, thereby achieving the purpose of milling.

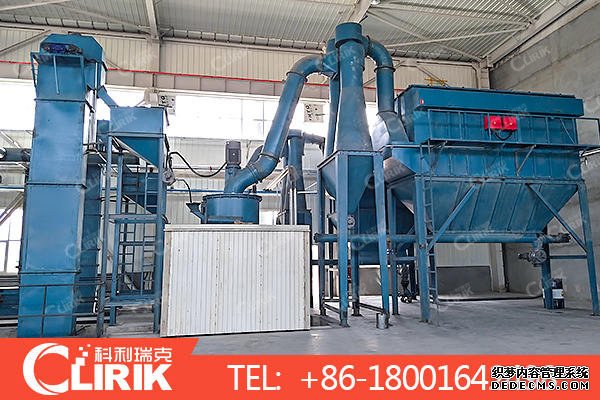

ultra fine grinding plant
