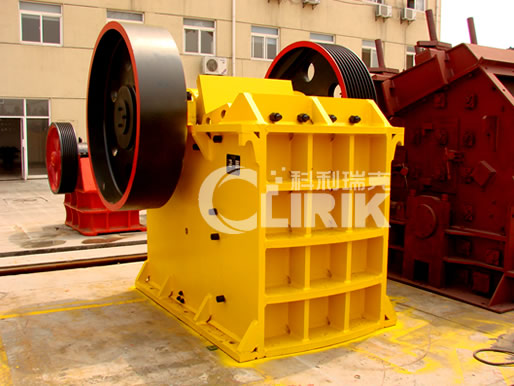

PEX Jaw Crusher

PEX series jaw crusher

PEX series jaw crusher for sale, PEX series jaw crusher manufacturer, PEX series jaw crusher supplier
Shanghai Clirik Machinery Co., Ltd is a large professional manufacturer of Hammer Crusher,
The Clirik PEX series jaw crusher have six models: PEX-150×250,PEX-150×750,PEX-250×750,PEX-250×1000,PEX-250×1200,PEX-300×1300.

Product description of PEX series jaw crusher
Jaw crusher series have features of big crushing ratio, uniform products size, simple structure, reliable work, easy maintenance and low cost. It is widely used in stone mining, metallurgy industry, building material, highway, railway, water conservancy and chemical industries. Various materials with compression resistance less than 320MPa can be crushed.

Working principle of PEX series jaw crusher
Jaw crusher’s working type is of moving and squeezing. The working principle is as follows: jaw crusher uses motor as its powder. Through the motor’s wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.

Advantages and features of PEX series jaw crusher
1.       High crushing ratio, uniform particle size
2.       Point eclipse discharge opening adjustment device, reliable and easy to adjust the range to meet the needs of different customers.
3.       Safe and reliable lubrication system, easy to replace parts, low maintenance workload.
4.       Simple structure, reliable function, low operating cost.

Main technical parameters of PEX series jaw crusher
Type Opening
 Size
(mm)		 Max.  Feed
Size
(mm)		 Output Open Range
(mm)		 Power
(KW)		 Capacity
(t/h)		 Size
(mm)		 Weight
(t)
PEX-150×250 250×150 125 10-40 5.5 1-5 875×758×850 0.81
PEX-150×750 750×150 125 18-18 15 5-16 1200×1500×1200 3.8
PEX-250×750 750×250 210 25-60 22-30 15-30 1667×1545×1020 5
PEX-250×1000 1000×250 210 25-60 30-37 16-50 1530×1992×1380 7
PEX-250×1200 1200×250 210 25-60 37 20-60 1900×2192×1430 8
PEX-300×1300 1300×300 250 25-105 75 20-90 2720×1950×1600 11

























PEX series jaw crusher price:
If you want to know the PEX series jaw crusher price or have any questions about PEX series jaw crusher, please do not hesitate to contact us.
