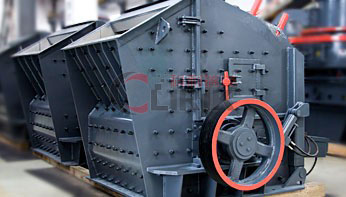

PFW Impact Crusher

PFW Impact Crusher

PFW-series impact crusher for sale, PFW-series impact crusher manufacturer, PFW-series impact crusher supplier
Shanghai Clirik Machinery Co., Ltd is a large professional manufacturer of Hammer Crusher,
Base on the plentiful experience of producing and marketing of impact crusher, Shanghai Clirik R&D institution designed the PFW series impact crusher. It is the newest style impact crusher and has been widely used in many industries, like chemical, metallurgy, road and bridge construction and sand making and so on.

Application of PFW Impact Crusher:
PFW series Impact crusher are mostly used as secondary crusher and it well fits for crushing numerous medium and soft mineral &rock materials, such as limestone, feldspar, calcite, talc, barite, clay, tombarthite, kaolin, gypsum, and graphite, etc.

Features of PFW Impact Crusher:
a, Advanced Manufacture process and high-end fabrication material
 b, Heavy rotor design and tight test method improve the rotor performance.
 c, Overall type cast steel structure bearing base improves anti load resistance capacity.
 d, Hydraulic jacking device and hydraulic regulated discharging port is helpful to save labor and time.

Technical data of PFW Impact Crusher:
*Table 1 (two-crush)
Model Rotor Φ×L
(mm)		 Feed Opening
(mm)		 Max Feeding
(mm)		 Capacity
(t/h)		 Power
(kw)		 Motor Model Machine Size
(mm)
PFW1214II Ф1150×1400 1100×1430 500 130-200 4-132 Y315M-4/132 2400×2310×2550
PFW1315II Ф1300×1500 1200×1530 600 180-320 4-160 Y315L1-4/160 2700×2570×2800
PFW1318II Ф1300×1800 1200×1830 700 240-400 4-200 Y315L2-4/200 2700×2870×2800
PFW1415II Ф1400×1500 1450×1530 800 240-450 4-200 Y315L2-4/200 3000×2700×3070
*Table 2 (three-crush)
Model Rotor
 Φ×L
(mm)		 Feed
Opening
(mm)		 Max
Feeding
(mm)		 Capacity
(t/h)		 Power
(kw)		 Motor
Model		 Machine Size(mm)
PFW1214Ⅲ Ф1150×1400 570×1430 250 90-170 4-132 Y315M-4/132 2550×2310×2100
PFW1315Ⅲ Ф1300×1500 625×1530 300 180-270 4-160 Y315L1-4/160 2960×2570×2380
PFW1318Ⅲ Ф1300×1800 625×1830 300 220-300 4-200 Y315L2-4/200 2960×2870×2380
PFW1415Ⅲ Ф1400×1500 800×1530 350 280-350 4-200 Y315L2-4/200 3120×2650×2660

PFW-series impact crusher price:
If you want to know the PFW-series impact crusher price or have any questions about impact crusher, please do not hesitate to contact us.
