Feldspar powder processing plant/feldspar powder grinding mill

Feldspar processing plant,Feldspar powder milling process

Introduce of Feldspar powder processing plant/feldspar powder grinding mill:
If you want to processing Feldspar,please choose the following plant:
YGM high pressure suspension Raymond roller Mill:
The finished fineness: 15-425 mesh (fineness can be adjusted)
HGM superfine powder grinding mill
The finished fineness:325-3000 mesh (fineness can be adjusted)
European version of the coarse powder grinding mill machine:
The finished fineness is less than 3mm.

The purpose of Feldspar powder processing plant/feldspar powder grinding mill is for grinding materials with hardness less than 6 in Moh’s scale and humidity less than 6 percent such as kaolin, limestone, calcite, marble,talcum, barite, gypsum, dolomite, bentonite mud,mica, pyrophyllite, sepiolite, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment and so on.

Technical Advantages of Feldspar powder processing plant/feldspar powder grinding mill:
● High Efficiency
Under the same finished final size and the same motor power, the capacity of HGM series micro powder grinding mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
● Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.
● High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
● High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
●Environment-friendly
The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
●Advanced intelligent speed control device
Convenient adjusting, more uniform particle size.

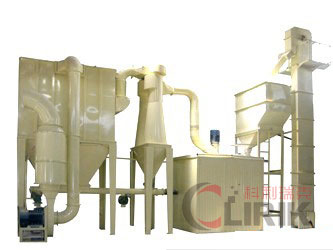

The Feldspar powder processing plant/feldspar powder grinding mill mainly consist of hammer crusher , main unit, Frequency conversion classifier, powder collector, pulse dust cleaner,high pressure positive blower, air compressor, muffler, electrical apparatus control system, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

Working Principle of Feldspar powder processing plant/feldspar powder grinding mill:
The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse materials return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.

Model and technical data of Feldspar powder processing plant/feldspar powder grinding mill:
Model
HGM80
HGM90
HGM100
HGM100A
HGM125
Ring Diameter(mm)
800
900
1000
1000
1250
Ring Number/pcs
3
3-4
3-4
4
4
Roller Number/pcs
21
24-32
27-36
27-36
40-44
Main Shaft Speed/r. p. min
230-240
200-220
180-200
180-200
135-155
Input Size/mm
≦15
Finished Size/um
5-47(325-3000)
Capacity t/h
0.4-4.5
0.4-5.5
0.4-6.5
0.4-7.5
0.7-10
Outlet Size L*W*H/m
13.9*4*6.2
14.7*4.8*7.2
18*4.6*8.6
18*4.6*8.6
14*9*10
Note:This specification is just referencing, any changes are subject to the products.

Any questions and inquiries will be highly regarded. Just email us the drawing and detailed requirement, you will get a complete quotation with technical analysis within 24 hours.
