mica grinding plant/powder processing plant



Sheet mica can be processed by Sheet mica grinding plant.
Detailed Product Description about Sheet mica stone grinding mill:
Sheet mica grinding plant is mainly applied to grind non-inflammable, non-explosive and brittle materials with Mohs’ hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, and talc etc, totally more than 100 kinds of materials. Product fineness can be controlled between 300~3000 mesh (47~5 micron) .Comparable with ball mill, Sheet mica stone grinding mill has features of low cost, high capacity, easy operation.
Production Line Configuration of Sheet mica grinding plant:

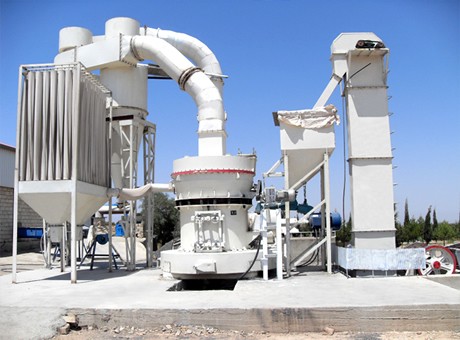

The whole set HGM Sheet mica stone grinding mill consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems
Working Principle of Sheet mica grinding plant:
The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse powder return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.

Technical Data of Sheet mica grinding plant:
Model HGM80 HGM90 HGM100 HGM100A HGM125
Ring Diameter(mm) 800 900 1000 1000 1250
Ring Number/pcs 3 3-4 3-4 4 4
Roller Number/pcs 21 24-32 27-36 27-36 40-44
Main Shaft Speed/r. p. min 230-240 200-220 180-200 180-200 135-155
Input Size/mm ≦15
Finished Size/um 5-47(325-3000)
Capacity t/h 0.4-4.5 0.4-5.5 0.4-6.5 0.4-7.5 0.7-10
Outlet Size L*W*H/m 13.9*4*6.2 14.7*4.8*7.2 18*4.6*8.6 18*4.6*8.6 14*9*10.25
Note: This specification is just referencing, any changes are subject to the products.
Should you have any questions, please do not hesitate to contact me.
