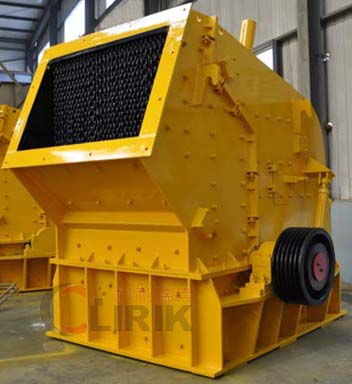

PF-series impact crusher

Impact crusher of PF-series impact crusher

 PF-series impact crusher
 These series of impact crushers are designed for crushing ores and rocks with particle sizes less than 500mm and compression strength no more than 320MPa. It has features of big crushing ratio, high-efficiency crushing, cubic shape, selectable crushing, etc. It is widely used in highway, hydropower construction, airport and building industries.
Working principle of PF-series impact crusher
 The impact crusher crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. The machine employs self- weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine.

Advantages and features of PF-series impact crusher
1.Efficient and energy saving;
2.Special structure, connected without key;
3.High chrome hammer, and unique impact liner;
4.Cubic shape of product, adjustable output size;
5.Easy maintenance, and reliable operation.

Main technical parameters of PF-series impact crusher

Model
PF-107
PF-1010
PF-1210
PF-1214
PF-1315
PF-1320
Specification(mm)
1000×700
1000x1050
1250x1050
1250x1400
1320x1500
1320x2000
Feeding opening size
400x730
400x1080
400x1080
400x1430
860x1520
860x2030
Max. feeding length(mm)
300
350
350
350
350
500
Capacity(t/h)
30-50
50-90
80-130
90-180
160-250
250-350
Powder(KW)
55
75
110
132
200
300
Weigh(t)
7
11
14
19
24
30

Note: This specification is just referencing, any changes are subject to the products.
