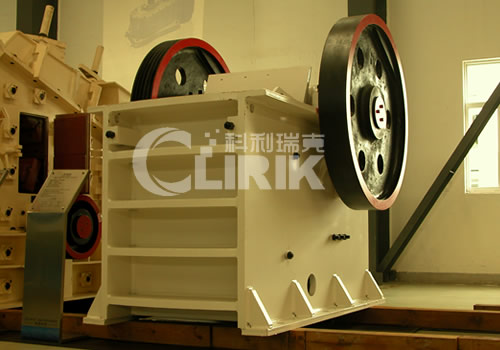

PE250X400 Jaw Crusher
PE250X400 Jaw Crusher overview
PE250x400 Hammer crusher is widely applied to crush rocks and ores such as slags, construction materials, marble etc., whose pressure resistance strength is under 320Mpa. It is suitable for primary crush. It can be used in mining, metallurgical industry, construction,chemistry, etc.
Features of PE250X400 Jaw Crusher:
1. simple structure, easy maintenance;
2. stable performance
3. even final particles and high crushing ratio.
Working principle of PE250X400 Jaw Crusher:
Jaw crusher is driven by motor. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and cheek plate can be crushed and discharged through the discharging opening.
Technical data of PE250X400 Jaw Crusher:
Type:PE250x400
Inlet size(mm):250x400
Max Feeding Size(mm):210
Discharge Size(mm):20-60
Power(KW):15-18.5
Capacity(T/H):5-20
